Dawn Machinery Vertical Grinders
CNC vertical grinders with ø300 mm to ø2500 mm worktables, in five spindle configurations, sourced at competitive pricing.
About Dawn Machinery
Dawn Machinery builds CNC vertical grinders for large, heavy round parts. Worktables run from ø300 mm to ø2500 mm, tables carry up to 8,000 kg, and every size is offered with a single spindle, dual vertical spindles, or a vertical-plus-horizontal spindle setup, with or without an automatic tool changer (ATC).
Simply Grinders sources the full Dawn line at competitive pricing. Tell us your part size, material and tolerances, and we’ll tell you which model fits – and which ones don’t.
Five Spindle Configurations
Every Dawn table size comes in these setups. Pick the structure, then the table size.

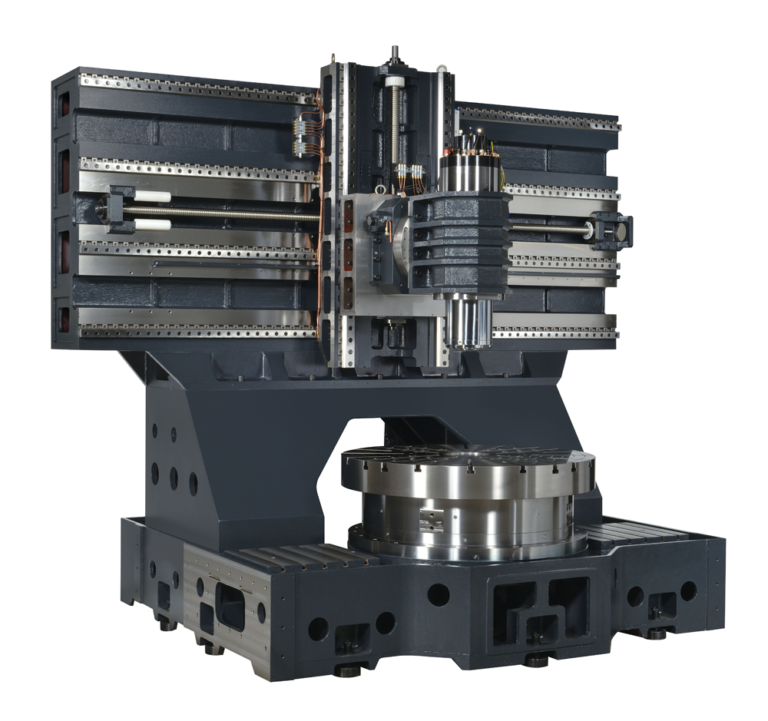

Single Spindle with ATC
One vertical spindle with a 6-tool automatic tool changer.
DN-300
DN-500
DN-600
DN-800
DN-1200
DN-1600
DN-2000
Single Spindle without ATC
One vertical spindle with manual wheel changes.
DN-301
DN-501
DN-601
DN-801
DN-1201
DN-1601
DN-2001

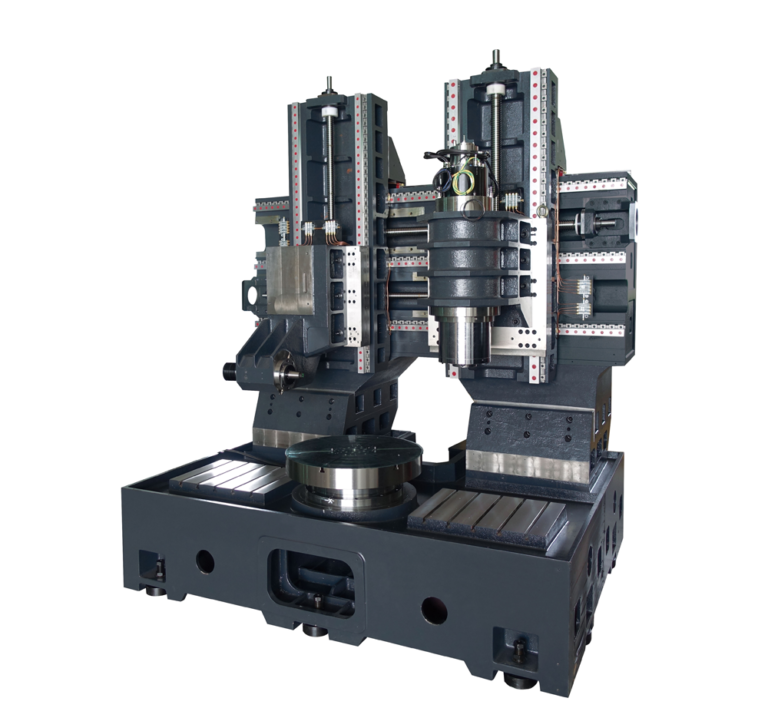

Dual Vertical Spindle without ATC
Two vertical spindles (S1 and S2) on one machine.
DN-302
DN-502
DN-602
DN-802
DN-1202
DN-1602
DN-2002
DN-202

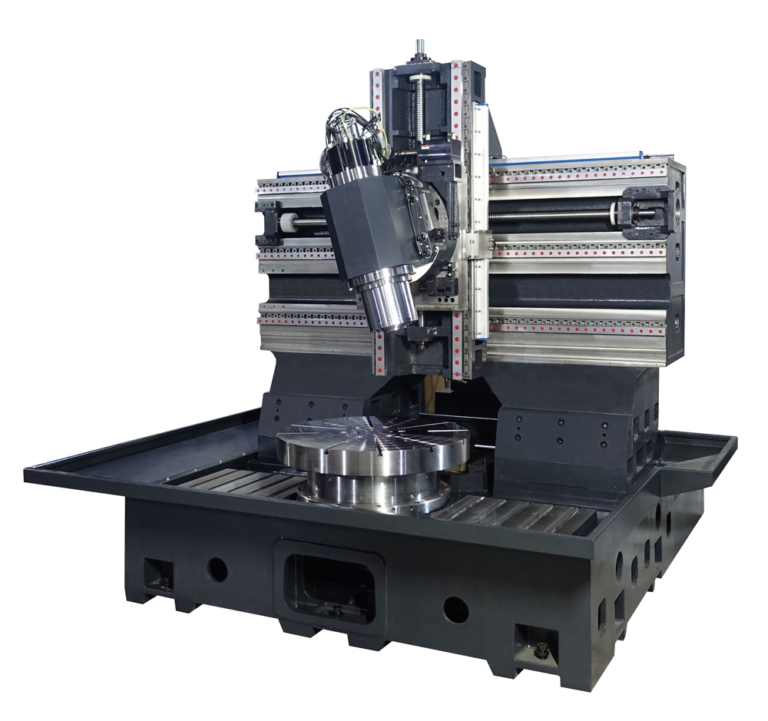

One Vertical + One Horizontal Spindle without ATC
A vertical spindle plus a horizontal spindle.
DN-306F
DN-506F
DN-606F
DN-806F
DN-1206F
DN-1606F
DN-2006F

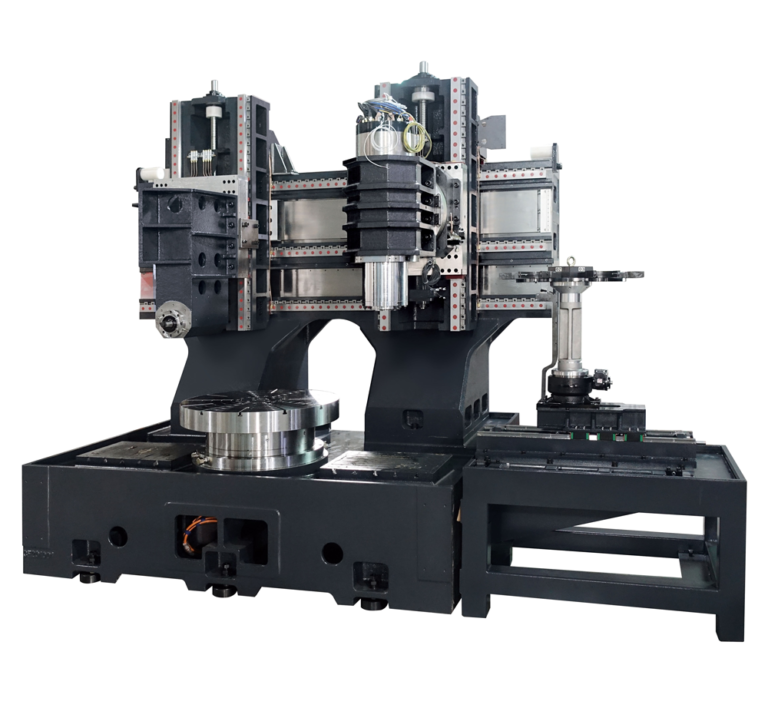

One Vertical + One Horizontal Spindle with ATC
Vertical and horizontal spindles with an automatic tool changer.
DN-308F
DN-508F
DN-608F
DN-808F
DN-1208F
DN-1608F
DN-2008F
Dawn Vertical Grinder Models
Tap any block to open the specifications, questions and full article for that model.
Dawn DN-300 Vertical Grinder
Machine Specifications
Available as: DN-300 Single Spindle with ATC · DN-301 Single Spindle without ATC · DN-302 Dual Vertical Spindle without ATC · DN-306F One Vertical + One Horizontal Spindle without ATC · DN-308F One Vertical + One Horizontal Spindle with ATC
| Capacity | |
|---|---|
| Worktable Diameter (mm) | ø300 |
| Max Swing of Workpiece (mm) | ø380 |
| Grinding Length, Inner / Outer Diameter (mm) | 260 |
| Max Load of Table (kg) | 300 |
| Worktable | |
| Worktable Speed (RPM) | 300 |
| Worktable Power (kW) | 3 |
| Spindles & Wheels | |
| Vertical Spindle Max Grinding Wheel Dia. (mm) | ø205 |
| Horizontal Spindle Adaptor / Speed (RPM) | 3,600 |
| Horizontal Spindle Drive Power (kW) | 5 |
| Horizontal Spindle Max Grinding Wheel Dia. (mm) | ø305 |
| ATC Series (Single Spindle) | |
| Opening Height, Option (mm) | 550 (650) |
| Spindle Taper / Speed (RPM) | BBT30 / 24,000 |
| Spindle Drive Power (kW) | 7.5 |
| Tool Magazine Capacity (tools) | 6 |
| Machine Weight (t) | 6 |
| Floor Space (m) | 3.5 x 3 |
| Dual Spindle Series | |
| Opening Height, Option (mm) | 550 (650) |
| S1 Spindle Taper / Speed (RPM) | M28 / 18,000 |
| S1 Spindle Drive Power (kW) | 15 |
| S2 Spindle Taper / Speed (RPM) | M22 / 24,000 |
| S2 Spindle Drive Power (kW) | 7.5 |
| Machine Weight (t) | 5 |
| Floor Space (m) | 3 x 3 |
| Travel & Scales | |
| Single Spindle Series X-Axis Travel (mm) | 1000 |
| Single Spindle Series Z-Axis Travel (mm) | 400 |
| Dual Spindle Series X1 / X2 Travel (mm) | 750 / 750 |
| Dual Spindle Series Z-Axis Travel (mm) | 400 |
| Standard Linear Scale Axis, Single Spindle | X / Z |
| Standard Linear Scale Axis, Dual Spindle | X1 / X2 or X1 / Z2 |
Values in ( ) are optional upgrades.
Questions & Answers
Question 1 goes here?
Answer 1 goes here.
Question 2 goes here?
Answer 2 goes here.
Question 3 goes here?
Answer 3 goes here.
Read the Full Article
Article headline goes here
Article paragraph one goes here.
Article paragraph two goes here.
Dawn DN-500 Vertical Grinder
Machine Specifications
Available as: DN-500 Single Spindle with ATC · DN-501 Single Spindle without ATC · DN-502 Dual Vertical Spindle without ATC · DN-506F One Vertical + One Horizontal Spindle without ATC · DN-508F One Vertical + One Horizontal Spindle with ATC
| Capacity | |
|---|---|
| Worktable Diameter (mm) | ø500 |
| Max Swing of Workpiece (mm) | ø680 (ø880) |
| Grinding Length, Inner / Outer Diameter (mm) | 400 |
| Max Load of Table (kg) | 300 |
| Worktable | |
| Worktable Speed (RPM) | 300 |
| Worktable Power (kW) | 3 |
| Spindles & Wheels | |
| Vertical Spindle Max Grinding Wheel Dia. (mm) | ø255 |
| Horizontal Spindle Adaptor / Speed (RPM) | 3,600 |
| Horizontal Spindle Drive Power (kW) | 7.5 |
| Horizontal Spindle Max Grinding Wheel Dia. (mm) | ø405 |
| ATC Series (Single Spindle) | |
| Opening Height, Option (mm) | 950 (1050) |
| Spindle Taper / Speed (RPM) | HSK100A / 10,000 |
| Spindle Drive Power (kW) | 21 |
| Tool Magazine Capacity (tools) | 6 |
| Machine Weight (t) | 12.5 |
| Floor Space (m) | 3.9 x 3.5 |
| Dual Spindle Series | |
| Opening Height, Option (mm) | 850 (1050) |
| S1 Spindle Taper / Speed (RPM) | M36 / 8,000 |
| S1 Spindle Drive Power (kW) | 15 |
| S2 Spindle Taper / Speed (RPM) | M36 / 20,000 |
| S2 Spindle Drive Power (kW) | 18 |
| Machine Weight (t) | 12 |
| Floor Space (m) | 3 x 3.4 |
| Travel & Scales | |
| Single Spindle Series X-Axis Travel (mm) | 1400 |
| Single Spindle Series Z-Axis Travel (mm) | 800 |
| Dual Spindle Series X1 / X2 Travel (mm) | 750 / 750 |
| Dual Spindle Series Z-Axis Travel (mm) | 700 (900) |
| Standard Linear Scale Axis, Single Spindle | X / Z |
| Standard Linear Scale Axis, Dual Spindle | X1 / X2 or X1 / Z2 |
Values in ( ) are optional upgrades.
Questions & Answers
Question 1 goes here?
Answer 1 goes here.
Question 2 goes here?
Answer 2 goes here.
Question 3 goes here?
Answer 3 goes here.
Read the Full Article
Article headline goes here
Article paragraph one goes here.
Article paragraph two goes here.
Dawn DN-600 Vertical Grinder
Machine Specifications
Available as: DN-600 Single Spindle with ATC · DN-601 Single Spindle without ATC · DN-602 Dual Vertical Spindle without ATC · DN-606F One Vertical + One Horizontal Spindle without ATC · DN-608F One Vertical + One Horizontal Spindle with ATC
| Capacity | |
|---|---|
| Worktable Diameter (mm) | ø600 |
| Max Swing of Workpiece (mm) | ø680 (ø880) |
| Grinding Length, Inner / Outer Diameter (mm) | 400 |
| Max Load of Table (kg) | 400 |
| Worktable | |
| Worktable Speed (RPM) | 250 |
| Worktable Power (kW) | 6.4 |
| Spindles & Wheels | |
| Vertical Spindle Max Grinding Wheel Dia. (mm) | ø255 |
| Horizontal Spindle Adaptor / Speed (RPM) | 3,600 |
| Horizontal Spindle Drive Power (kW) | 7.5 |
| Horizontal Spindle Max Grinding Wheel Dia. (mm) | ø405 |
| ATC Series (Single Spindle) | |
| Opening Height, Option (mm) | 950 (1050) |
| Spindle Taper / Speed (RPM) | HSK100A / 10,000 |
| Spindle Drive Power (kW) | 21 |
| Tool Magazine Capacity (tools) | 6 |
| Machine Weight (t) | 13 |
| Floor Space (m) | 3.9 x 3.5 |
| Dual Spindle Series | |
| Opening Height, Option (mm) | 850 (1050) |
| S1 Spindle Taper / Speed (RPM) | M36 / 8,000 |
| S1 Spindle Drive Power (kW) | 15 |
| S2 Spindle Taper / Speed (RPM) | M36 / 20,000 |
| S2 Spindle Drive Power (kW) | 18 |
| Machine Weight (t) | 12.5 |
| Floor Space (m) | 3 x 4 |
| Travel & Scales | |
| Single Spindle Series X-Axis Travel (mm) | 1400 |
| Single Spindle Series Z-Axis Travel (mm) | 800 |
| Dual Spindle Series X1 / X2 Travel (mm) | 750 / 750 |
| Dual Spindle Series Z-Axis Travel (mm) | 700 (900) |
| Standard Linear Scale Axis, Single Spindle | X / Z |
| Standard Linear Scale Axis, Dual Spindle | X1 / X2 or X1 / Z2 |
Values in ( ) are optional upgrades.
Questions & Answers
Question 1 goes here?
Answer 1 goes here.
Question 2 goes here?
Answer 2 goes here.
Question 3 goes here?
Answer 3 goes here.
Read the Full Article
Article headline goes here
Article paragraph one goes here.
Article paragraph two goes here.

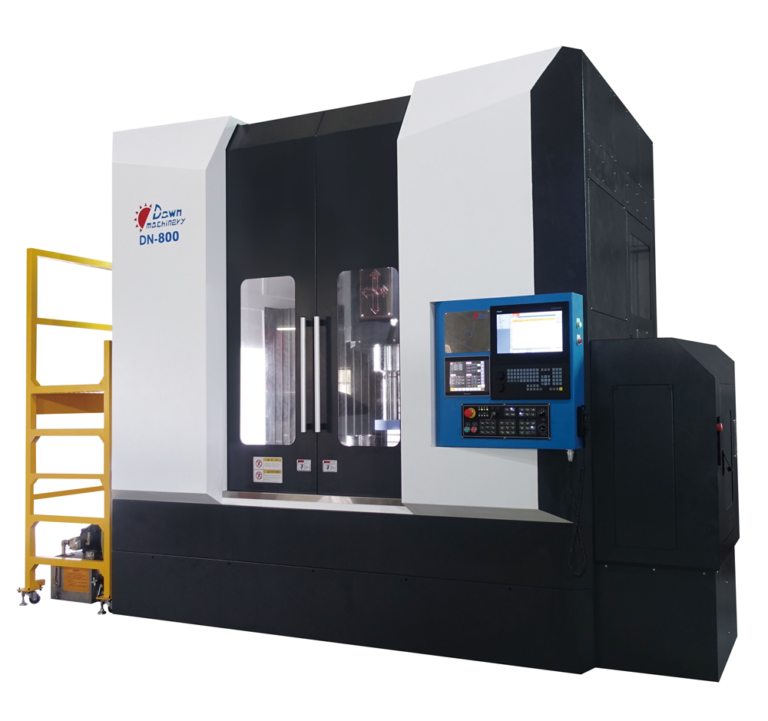

Dawn DN-800 Vertical Grinder
Machine Specifications
Available as: DN-800 Single Spindle with ATC · DN-801 Single Spindle without ATC · DN-802 Dual Vertical Spindle without ATC · DN-806F One Vertical + One Horizontal Spindle without ATC · DN-808F One Vertical + One Horizontal Spindle with ATC
| Capacity | |
|---|---|
| Worktable Diameter (mm) | ø800 |
| Max Swing of Workpiece (mm) | ø880 |
| Grinding Length, Inner / Outer Diameter (mm) | 400 |
| Max Load of Table (kg) | 1,000 |
| Worktable | |
| Worktable Speed (RPM) | 200 |
| Worktable Power (kW) | 6.4 |
| Spindles & Wheels | |
| Vertical Spindle Max Grinding Wheel Dia. (mm) | ø255 |
| Horizontal Spindle Adaptor / Speed (RPM) | 3,600 |
| Horizontal Spindle Drive Power (kW) | 7.5 |
| Horizontal Spindle Max Grinding Wheel Dia. (mm) | ø405 |
| ATC Series (Single Spindle) | |
| Opening Height, Option (mm) | 950 (1050) |
| Spindle Taper / Speed (RPM) | HSK100A / 10,000 |
| Spindle Drive Power (kW) | 21 |
| Tool Magazine Capacity (tools) | 6 |
| Machine Weight (t) | 14.5 |
| Floor Space (m) | 3.9 x 3.5 |
| Dual Spindle Series | |
| Opening Height, Option (mm) | 850 (1050) |
| S1 Spindle Taper / Speed (RPM) | M36 / 8,000 |
| S1 Spindle Drive Power (kW) | 15 |
| S2 Spindle Taper / Speed (RPM) | M36 / 20,000 |
| S2 Spindle Drive Power (kW) | 18 |
| Machine Weight (t) | 13 |
| Floor Space (m) | 3.3 x 3.5 |
| Travel & Scales | |
| Single Spindle Series X-Axis Travel (mm) | 1400 |
| Single Spindle Series Z-Axis Travel (mm) | 800 |
| Dual Spindle Series X1 / X2 Travel (mm) | 750 / 750 |
| Dual Spindle Series Z-Axis Travel (mm) | 700 (900) |
| Standard Linear Scale Axis, Single Spindle | X / Z |
| Standard Linear Scale Axis, Dual Spindle | X1 / X2 or X1 / Z2 |
Values in ( ) are optional upgrades.
Questions & Answers
Question 1 goes here?
Answer 1 goes here.
Question 2 goes here?
Answer 2 goes here.
Question 3 goes here?
Answer 3 goes here.
Read the Full Article
Article headline goes here
Article paragraph one goes here.
Article paragraph two goes here.

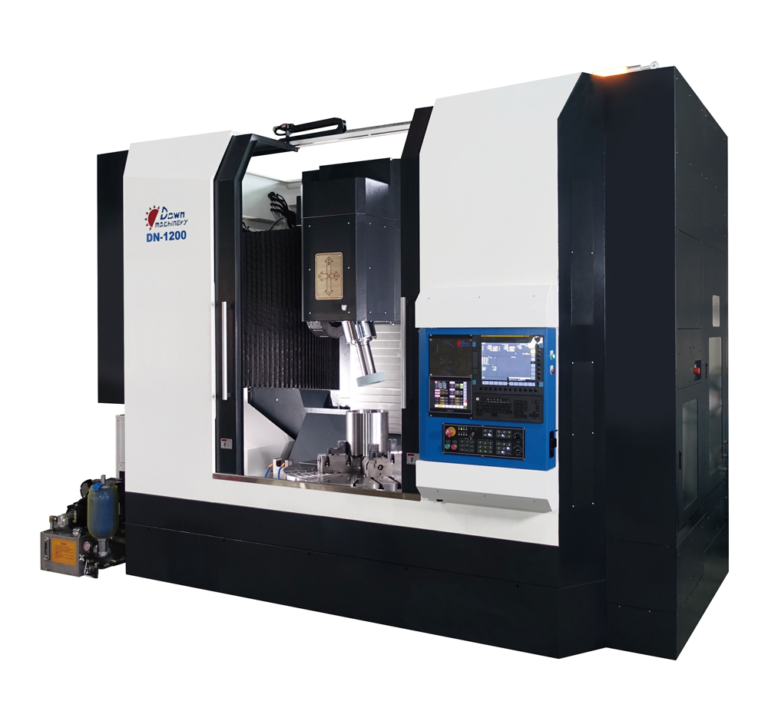

Dawn DN-1200 Vertical Grinder
Machine Specifications
Available as: DN-1200 Single Spindle with ATC · DN-1201 Single Spindle without ATC · DN-1202 Dual Vertical Spindle without ATC · DN-1206F One Vertical + One Horizontal Spindle without ATC · DN-1208F One Vertical + One Horizontal Spindle with ATC
| Capacity | |
|---|---|
| Worktable Diameter (mm) | ø1200 |
| Max Swing of Workpiece (mm) | ø1280 |
| Grinding Length, Inner / Outer Diameter (mm) | 400 |
| Max Load of Table (kg) | 5,000 |
| Worktable | |
| Worktable Speed (RPM) | 100 |
| Worktable Power (kW) | 6.4 |
| Spindles & Wheels | |
| Vertical Spindle Max Grinding Wheel Dia. (mm) | ø305 |
| Horizontal Spindle Adaptor / Speed (RPM) | 3,600 |
| Horizontal Spindle Drive Power (kW) | 7.5 |
| Horizontal Spindle Max Grinding Wheel Dia. (mm) | ø405 |
| ATC Series (Single Spindle) | |
| Opening Height, Option (mm) | 950 (1250) |
| Spindle Taper / Speed (RPM) | HSK100A / 10,000 |
| Spindle Drive Power (kW) | 25 |
| Tool Magazine Capacity (tools) | 6 |
| Machine Weight (t) | 18 |
| Floor Space (m) | 4.5 x 3.8 |
| Dual Spindle Series | |
| Opening Height, Option (mm) | 950 (1250) |
| S1 Spindle Taper / Speed (RPM) | M36 / 8,000 |
| S1 Spindle Drive Power (kW) | 15 |
| S2 Spindle Taper / Speed (RPM) | M36 / 20,000 |
| S2 Spindle Drive Power (kW) | 18 |
| Machine Weight (t) | 18 |
| Floor Space (m) | 4.5 x 3.8 |
| Travel & Scales | |
| Single Spindle Series X-Axis Travel (mm) | 2400 |
| Single Spindle Series Z-Axis Travel (mm) | 800 (1100) |
| Dual Spindle Series X1 / X2 Travel (mm) | 1200 / 1200 |
| Dual Spindle Series Z-Axis Travel (mm) | 800 (1100) |
| Standard Linear Scale Axis, Single Spindle | X / Z |
| Standard Linear Scale Axis, Dual Spindle | X1 / X2 or X1 / Z2 |
Values in ( ) are optional upgrades.
Questions & Answers
Question 1 goes here?
Answer 1 goes here.
Question 2 goes here?
Answer 2 goes here.
Question 3 goes here?
Answer 3 goes here.
Read the Full Article
Article headline goes here
Article paragraph one goes here.
Article paragraph two goes here.
Dawn DN-1600 Vertical Grinder
Machine Specifications
Available as: DN-1600 Single Spindle with ATC · DN-1601 Single Spindle without ATC · DN-1602 Dual Vertical Spindle without ATC · DN-1606F One Vertical + One Horizontal Spindle without ATC · DN-1608F One Vertical + One Horizontal Spindle with ATC
| Capacity | |
|---|---|
| Worktable Diameter (mm) | ø1600 |
| Max Swing of Workpiece (mm) | ø1780 |
| Grinding Length, Inner / Outer Diameter (mm) | 400 |
| Max Load of Table (kg) | 5,000 |
| Worktable | |
| Worktable Speed (RPM) | 80 |
| Worktable Power (kW) | 7.1 |
| Spindles & Wheels | |
| Vertical Spindle Max Grinding Wheel Dia. (mm) | ø305 |
| Horizontal Spindle Adaptor / Speed (RPM) | 3,600 |
| Horizontal Spindle Drive Power (kW) | 7.5 |
| Horizontal Spindle Max Grinding Wheel Dia. (mm) | ø405 |
| ATC Series (Single Spindle) | |
| Opening Height, Option (mm) | 950 (1250) |
| Spindle Taper / Speed (RPM) | HSK100A / 10,000 |
| Spindle Drive Power (kW) | 25 |
| Tool Magazine Capacity (tools) | 6 |
| Machine Weight (t) | 25 |
| Floor Space (m) | 6 x 4.5 |
| Dual Spindle Series | |
| Opening Height, Option (mm) | 950 (1250) |
| S1 Spindle Taper / Speed (RPM) | M36 / 8,000 |
| S1 Spindle Drive Power (kW) | 15 |
| S2 Spindle Taper / Speed (RPM) | M36 / 20,000 |
| S2 Spindle Drive Power (kW) | 18 |
| Machine Weight (t) | 26 |
| Floor Space (m) | 5.5 x 4.5 |
| Travel & Scales | |
| Single Spindle Series X-Axis Travel (mm) | 2800 |
| Single Spindle Series Z-Axis Travel (mm) | 900 (1100) |
| Dual Spindle Series X1 / X2 Travel (mm) | 1400 / 1400 |
| Dual Spindle Series Z-Axis Travel (mm) | 900 (1100) |
| Standard Linear Scale Axis, Single Spindle | X / Z |
| Standard Linear Scale Axis, Dual Spindle | X1 / X2 or X1 / Z2 |
Values in ( ) are optional upgrades.
Questions & Answers
Question 1 goes here?
Answer 1 goes here.
Question 2 goes here?
Answer 2 goes here.
Question 3 goes here?
Answer 3 goes here.
Read the Full Article
Article headline goes here
Article paragraph one goes here.
Article paragraph two goes here.
Dawn DN-2000 Vertical Grinder
Machine Specifications
Available as: DN-2000 Single Spindle with ATC · DN-2001 Single Spindle without ATC · DN-2002 Dual Vertical Spindle without ATC · DN-2006F One Vertical + One Horizontal Spindle without ATC · DN-2008F One Vertical + One Horizontal Spindle with ATC
| Capacity | |
|---|---|
| Worktable Diameter (mm) | ø2000 |
| Max Swing of Workpiece (mm) | ø2180 |
| Grinding Length, Inner / Outer Diameter (mm) | 400 |
| Max Load of Table (kg) | 8,000 |
| Worktable | |
| Worktable Speed (RPM) | 60 |
| Worktable Power (kW) | 7.1 |
| Spindles & Wheels | |
| Vertical Spindle Max Grinding Wheel Dia. (mm) | ø305 |
| Horizontal Spindle Adaptor / Speed (RPM) | 3,600 |
| Horizontal Spindle Drive Power (kW) | 7.5 |
| Horizontal Spindle Max Grinding Wheel Dia. (mm) | ø405 |
| ATC Series (Single Spindle) | |
| Opening Height, Option (mm) | 950 (1250) |
| Spindle Taper / Speed (RPM) | HSK100A / 10,000 |
| Spindle Drive Power (kW) | 25 |
| Tool Magazine Capacity (tools) | 6 |
| Machine Weight (t) | 37 |
| Floor Space (m) | 6 x 5 |
| Dual Spindle Series | |
| Opening Height, Option (mm) | 950 (1250) |
| S1 Spindle Taper / Speed (RPM) | M36 / 8,000 |
| S1 Spindle Drive Power (kW) | 15 |
| S2 Spindle Taper / Speed (RPM) | M36 / 20,000 |
| S2 Spindle Drive Power (kW) | 18 |
| Machine Weight (t) | 38 |
| Floor Space (m) | 5.5 x 5 |
| Travel & Scales | |
| Single Spindle Series X-Axis Travel (mm) | 3200 |
| Single Spindle Series Z-Axis Travel (mm) | 900 (1100) |
| Dual Spindle Series X1 / X2 Travel (mm) | 1600 / 1600 |
| Dual Spindle Series Z-Axis Travel (mm) | 900 (1100) |
| Standard Linear Scale Axis, Single Spindle | X / Z |
| Standard Linear Scale Axis, Dual Spindle | X1 / X2 or X1 / Z2 |
Values in ( ) are optional upgrades.
Questions & Answers
Question 1 goes here?
Answer 1 goes here.
Question 2 goes here?
Answer 2 goes here.
Question 3 goes here?
Answer 3 goes here.
Read the Full Article
Article headline goes here
Article paragraph one goes here.
Article paragraph two goes here.
Dawn DN-2500 Vertical Grinder
Machine Specifications
Built to order: configuration is customized to your application.
| Worktable Diameter (mm) | ø2500 |
|---|---|
| All other specifications | Customized to your application |
Questions & Answers
Question 1 goes here?
Answer 1 goes here.
Question 2 goes here?
Answer 2 goes here.
Question 3 goes here?
Answer 3 goes here.
Read the Full Article
Article headline goes here
Article paragraph one goes here.
Article paragraph two goes here.
Compare Every Dawn Model
Open the Full Dawn Spec Chart
| Specification | DN-300 | DN-500 | DN-600 | DN-800 | DN-1200 | DN-1600 | DN-2000 |
|---|---|---|---|---|---|---|---|
| Capacity | |||||||
| Worktable Diameter (mm) | ø300 | ø500 | ø600 | ø800 | ø1200 | ø1600 | ø2000 |
| Max Swing of Workpiece (mm) | ø380 | ø680 (ø880) | ø680 (ø880) | ø880 | ø1280 | ø1780 | ø2180 |
| Grinding Length, Inner / Outer Diameter (mm) | 260 | 400 | 400 | 400 | 400 | 400 | 400 |
| Max Load of Table (kg) | 300 | 300 | 400 | 1,000 | 5,000 | 5,000 | 8,000 |
| Worktable | |||||||
| Worktable Speed (RPM) | 300 | 300 | 250 | 200 | 100 | 80 | 60 |
| Worktable Power (kW) | 3 | 3 | 6.4 | 6.4 | 6.4 | 7.1 | 7.1 |
| Spindles & Wheels | |||||||
| Vertical Spindle Max Grinding Wheel Dia. (mm) | ø205 | ø255 | ø255 | ø255 | ø305 | ø305 | ø305 |
| Horizontal Spindle Adaptor / Speed (RPM) | 3,600 | 3,600 | 3,600 | 3,600 | 3,600 | 3,600 | 3,600 |
| Horizontal Spindle Drive Power (kW) | 5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Horizontal Spindle Max Grinding Wheel Dia. (mm) | ø305 | ø405 | ø405 | ø405 | ø405 | ø405 | ø405 |
| ATC Series (Single Spindle) | |||||||
| Opening Height, Option (mm) | 550 (650) | 950 (1050) | 950 (1050) | 950 (1050) | 950 (1250) | 950 (1250) | 950 (1250) |
| Spindle Taper / Speed (RPM) | BBT30 / 24,000 | HSK100A / 10,000 | HSK100A / 10,000 | HSK100A / 10,000 | HSK100A / 10,000 | HSK100A / 10,000 | HSK100A / 10,000 |
| Spindle Drive Power (kW) | 7.5 | 21 | 21 | 21 | 25 | 25 | 25 |
| Tool Magazine Capacity (tools) | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Machine Weight (t) | 6 | 12.5 | 13 | 14.5 | 18 | 25 | 37 |
| Floor Space (m) | 3.5 x 3 | 3.9 x 3.5 | 3.9 x 3.5 | 3.9 x 3.5 | 4.5 x 3.8 | 6 x 4.5 | 6 x 5 |
| Dual Spindle Series | |||||||
| Opening Height, Option (mm) | 550 (650) | 850 (1050) | 850 (1050) | 850 (1050) | 950 (1250) | 950 (1250) | 950 (1250) |
| S1 Spindle Taper / Speed (RPM) | M28 / 18,000 | M36 / 8,000 | M36 / 8,000 | M36 / 8,000 | M36 / 8,000 | M36 / 8,000 | M36 / 8,000 |
| S1 Spindle Drive Power (kW) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| S2 Spindle Taper / Speed (RPM) | M22 / 24,000 | M36 / 20,000 | M36 / 20,000 | M36 / 20,000 | M36 / 20,000 | M36 / 20,000 | M36 / 20,000 |
| S2 Spindle Drive Power (kW) | 7.5 | 18 | 18 | 18 | 18 | 18 | 18 |
| Machine Weight (t) | 5 | 12 | 12.5 | 13 | 18 | 26 | 38 |
| Floor Space (m) | 3 x 3 | 3 x 3.4 | 3 x 4 | 3.3 x 3.5 | 4.5 x 3.8 | 5.5 x 4.5 | 5.5 x 5 |
| Travel & Scales | |||||||
| Single Spindle Series X-Axis Travel (mm) | 1000 | 1400 | 1400 | 1400 | 2400 | 2800 | 3200 |
| Single Spindle Series Z-Axis Travel (mm) | 400 | 800 | 800 | 800 | 800 (1100) | 900 (1100) | 900 (1100) |
| Dual Spindle Series X1 / X2 Travel (mm) | 750 / 750 | 750 / 750 | 750 / 750 | 750 / 750 | 1200 / 1200 | 1400 / 1400 | 1600 / 1600 |
| Dual Spindle Series Z-Axis Travel (mm) | 400 | 700 (900) | 700 (900) | 700 (900) | 800 (1100) | 900 (1100) | 900 (1100) |
| Standard Linear Scale Axis, Single Spindle | X / Z | X / Z | X / Z | X / Z | X / Z | X / Z | X / Z |
| Standard Linear Scale Axis, Dual Spindle | X1 / X2 or X1 / Z2 | X1 / X2 or X1 / Z2 | X1 / X2 or X1 / Z2 | X1 / X2 or X1 / Z2 | X1 / X2 or X1 / Z2 | X1 / X2 or X1 / Z2 | X1 / X2 or X1 / Z2 |
Values in ( ) are optional upgrades. DN-2500 (ø2500 mm worktable) is built to order with customized specifications.
Not sure which Dawn model fits? Let's talk.
Send us your part size, weight, material and tolerances. We’ll match you to the right table size and spindle setup.
